AC600 Video


 The model AC600 is featuring an industry leading 99% recovery efficiency for standard and hybrid vehicles and fully automatic function. The AC600 machine will recover, recycle, evacuate, leak-test and recharge  1234yf with improved 99% efficiency. It has automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. AC600 also builtin thermal printer and oil capacities database is available for all passenger vehicles.


Main functions

  1. Recovering/Recycling
  2. Discharging used oil
  3. Vacuum
  4. Refilling new oil
  5. Recharging
  6. Full Automatic mode
  7. Vacuum leak test (optional)

Auxiliary functions

  1. Vacuum system piping
  2. Multiple alarms
  3. Maintenance procedures
  4. Part inspections
  5. Calibration of load cell
  6. Parameters setting
  7. Gas cylinder heating
  8. Incompressible gases discharging



  • Automatic identify current refrigerant to prevent contamination
  • Automatic recovery/recycling/recharge, walk away and return when complete
  • Automatic vacuum helps get to the necessary vacuum level in any condition quickly
  • Automatic internal tank refill. No stopping to fill the internal tank during service
  • Automatic air purge removes the potential of air accumulating in the internal tank
  • Comprehensive A/C capacity database
  • Support Auto Mode: One step to do automatic recovery, recycling, vacuum and recharge
  • Tank filling with manual or pre-set value options
  • Onboard electronic scales
  • Built in thermal printer
  • Tank installed internally
  • Vacuum leak test to identify gross leaks in a system



  • Input power:AC110V 60Hz.
  • Compressor:3/8 HP.
  • Vacuum pump capacity:16Gal/min.
  • Recovery rate:99% to medium vacuum.
  • Vapor state refrigerant recovery speed:0.55Lbs/Min.
  • Gas cylinder volume:22LBS
  • Drying filter:20oz
  • Load cell accuracy(oil bottle):+_5g
  • Load cell accuracy(gas cylinder):+_10g
  • New and old oil bottle capacity:8.9/13.5oz Max working pressure 290PSI
  • Color screen:4.3inch 480RGB*272Dots.
  • Dimension:560*625*1048mm.
  • One year warranty, two years part and three years compressor

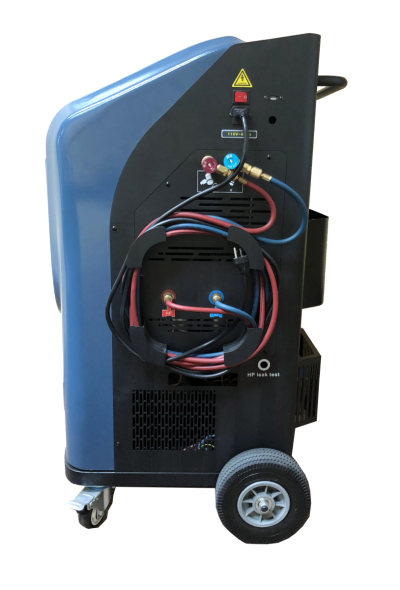

AC600 1234yf AC machine

SKU: AC600
